Fuel Consumption of 4 Tons Biomass Steam Boiler

The steam boiler manufacturer recommends Zozen Boiler as AAA Credit Level Enterprise and Jiangsu High-tech Enterprise. It has the ability to produce 2000 industrial boilers per year and 25,000 steam tons.

Technical parameters of 4 ton biomass steam boiler DZL4-1.25-T

Rated evaporation: 4t/h

Rated steam pressure: 1.25 Mpa

Rated Steam Temperature: 194℃

Feed water temperature: 105℃

Applicable fuels: biomass fuels such as straw, type II bituminous coal and anthracite

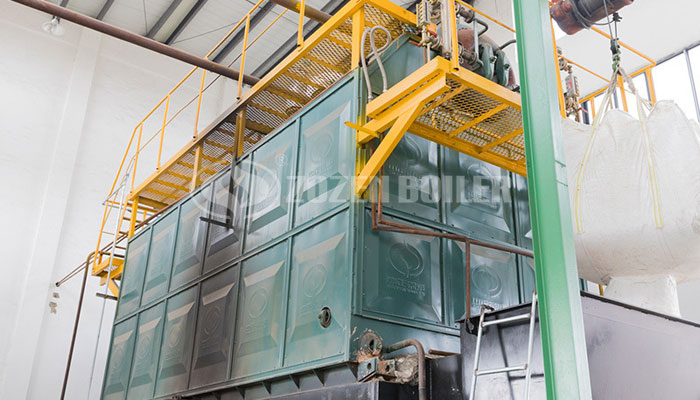

4 ton biomass steam boilers are arranged vertically with double drums, and the combustion mode is chain grate. Membrane water wall structure is adopted on both sides of furnace and combustion chamber. This is an independent and original design of ZOZEN. The advantages of this application are large heat transfer coefficient, good heat transfer effect, low heat loss, good air tightness, no deformation of furnace wall and no ash leakage.

The steam boiler manufacturer calculates the fuel consumption per hour of a 4 ton biomass steam boiler:

1 ton biomass boiler, heating capacity is 600,000 calories, biomass particle combustion calorific value is 3800 kcal, boiler combustion efficiency is calculated by 80%.

Fuel consumption per hour of 4 ton biomass boilers = boiler heat supply/biomass particle combustion calorific value/boiler combustion efficiency

= 2400000kcal/3800kcal/kg/80%=789.6kg

This is an hourly fuel consumption of a 4 ton biomass steam boiler. It can also be used to calculate daily and monthly fuel consumption. Fuel consumption is related to the later operation cost of the boiler, and is also a standard for users to consider the boiler. Details can be consulted online customer service.
