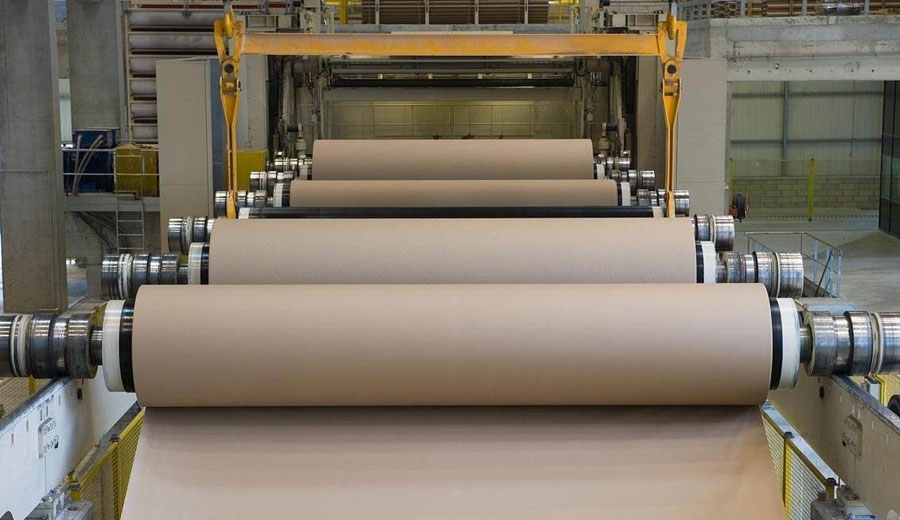

The papermaking industry has always been a big user of steam and electricity. The stable supply of steam and electricity is the fundamental problem of papermaking enterprises. To solve the problem of stable and efficient supply of steam in papermaking enterprises is one of the research topics of our boiler manufacturing enterprises. In recent years, the state has increased environmental protection. In order to meet the requirements of national environmental protection, all papermaking enterprises are popularized. With the implementation of the coal to gas project, our company has also become the main supplier of fuel (oil) gas steam boilers and supporting equipment for paper mills.
Send Enquiry
Get Quotation(contact us by one of the three ways)
If you are interested in our products, please email us at [email protected]
According to the actual process conditions of different customers, our company has designed a number of solutions for customers based on the design concept of high efficiency, energy saving and low emission. All the solutions have been verified by examples, as follows:
Our solution combines the actual needs of users, and the user operating process conditions are fully consistent, to achieve efficient and energy-saving, low emissions, fully automatic and safe operation.
Scheme I
1. User's technological conditions
Fuel: natural gas
Water supply conditions
Soft water temperature: 20 C, water temperature of deoxygenated water: 104 C
The condensate water intake accounts for 50 to 80% of the boiler running load, and the return water temperature is 80~90 C.
Requirement NOx is less than 30mg/Nm3
2, solutions

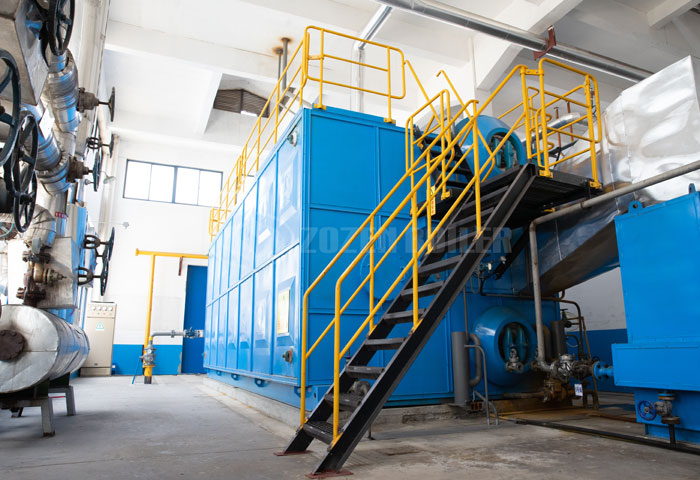

According to the user's process conditions, our company has designed such a system: the main exhaust port of the boiler is equipped with energy saver, air preheater, water supply preheater, chimney, and the burner adopts split hot air type ultra-low nitrogen burner.
The parameters are as follows: boiler design pressure: 1.25, 1.60, 2, 2.5MPa
Steam temperature: saturated or superheated steam.
The inlet temperature of the energy saver is 104 degrees centigrade, and the outlet temperature of the energy saver is 140 C.
Inlet air temperature of air preheater: 20 C, hot air outlet temperature: 83 C, outlet flue gas temperature: 85 C
The inlet temperature of the water heater is 20 C, the water volume is 20 to 50% of the load, and the outlet temperature is 65 C.
The exhaust temperature is less than 60 degrees.
