01Product thermal capacity:35 - 75 t/h
02Working pressure:3.8 - 5.4 Mpa
03Available fuel:Carbon black tail gas, biogas and methanol.etc.
Available industries:Power generation, heating, chemical, food, textile, printing and dyeing, tobacco, feed, medicine, building materials, wine, rubber, hospital
Send Enquiry
Get Quotation(contact us by one of the three ways)
If you are interested in our products, please email us at [email protected]

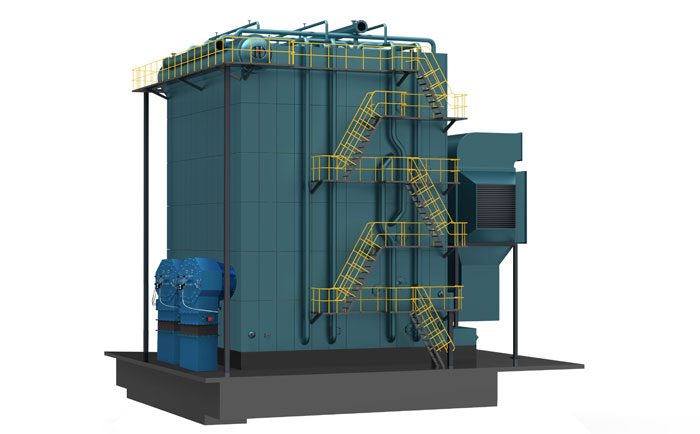

DHS corner tube gas fired boiler is a kind of boiler which uses a pipe system as the skeleton of the whole boiler. It bears all the load of the boiler by itself, so it also becomes a non-frame boiler. At the same time, this skeleton is also used as the descending tube and the upper and lower header of the boiler. The boiler drum is external type, the furnace is completely closed membrane wall structure, convection heating surface adopts flag tube structure. DHS corner tube gas fired boiler are widely used because of their compact structure, low steel consumption and fast temperature rise. The boiler is a bulk structure.
1. The main heating surface of boiler is natural circulation, and the convection heating surface is forced circulation. The convection heating surface has a connection loop with the downcomer. When the power is cut off, the natural circulation circuit can be formed. Ensure boiler safety.
2. Because the boiler adopts the whole membrane water wall structure, the furnace part adopts the whole closed structure, which can maintain the continuous micro positive pressure combustion and reduce the heat loss. The boiler has enough output and high thermal efficiency.
3. The central symmetrical arrangement is adopted in the design of the combustor and the furnace to ensure the uniform heating of each heating surface and the safety of water circulation. Boilers under 46 MW are arranged in the center of the front wall of the furnace with single burner, and boilers above 58 MW are arranged in parallel with the front wall of the furnace with double burners.
Due to its high performance and competitive price, our boilers has been exported to over 60 countries such as Indonesia, Philippines, Kenya, Tanzania, Ethiopia, Nigeria, South Africa, Egypt,etc.
About DHS corner tube gas fired boiler price, as the leading boiler manufacturer and exporter in China, we will provide 100% factory price and maxmium discount for you. If you are new in this industry, we will provide professional suggestions and solutions for you.

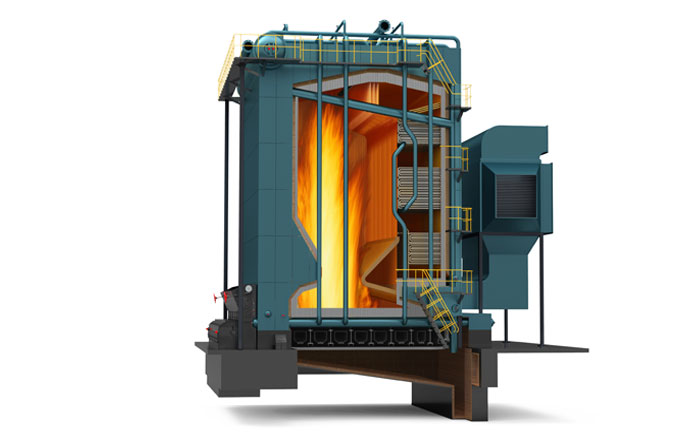

The DHS corner tube gas fired boiler adopts a corner tube structure. The furnace is a membrane-type water-cooled wall fully enclosed structure, the upper part of the convection channel is a serpentine tube superheater, and the lower part is a flag-type heating surface. Boiler flue gas outlet external condenser.
01
Modular design, easy to manufacture, quick installation and short construction period
02
The outer wall of the angle tube boiler is installed with light insulation material, no brick wall structure, and the insulation effect is excellent.
03
The boiler flue gas outlet is equipped with a condenser to ensure that the overall thermal efficiency of the boiler is ≥93%
04
With a unique water circulation structure, the drum is not heated and flows in a single direction by the heated water.
