01Product thermal capacity:0.35-14 MW
02Working pressure:0.7-1.25 MPA
03Outlet temperature:115/70, 95/70℃
Available industries:Heating, Hotels, Schools, Hospitals
Send Enquiry
Get Quotation(contact us by one of the three ways)
If you are interested in our products, please email us at [email protected]

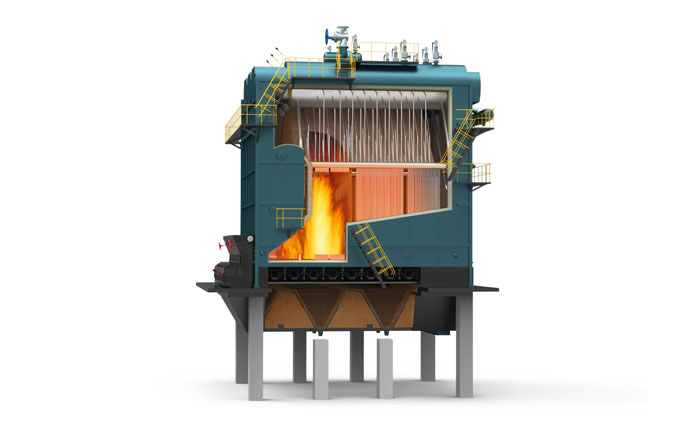

DZL series package steam / hot water boiler is a kind of vertical, three returns, water-fire tube, chain grate boiler, using middle bituminous coal, anthracite, biomass, etc. as fuel. The boiler with a single drum is placed vertically. In the drum, we use threaded tubes to enlarge the heating area. The drum and two-side water wall tubes compose radiation heating area.The alarm system for the limit parameters and the interlock protection.There are two kinds of dust collectors for your choice: cyclone and scrubber. The dust removal efficiency of the first one is up to 95%. While the one of the second one is up to 95% and at the same time SOx and NOx removal efficiency is up to 98%.
ZOZEN has more than 15 years of experience in this field and we can offer a broad range of products, service and support.
1. Small dimension leading to a low investment to the boiler house.
2. No need special protection when power failure happens suddenly.
3. High net efficiency and fast heating-up.
4. Lower dust consistence than state standard. The big firepot, new type boiler arch and dust separation turning room, all of the three, ensure the fuel is burned fully and the dust consistence is lower than state standard.
1. Our uniquely customized system solutions deliver maximum energy efficiency and low emissions
2. State of the art computer, variable frequency and video monitoring systems are in place to ensure the safe operation of our boliers
3. Agreeable design of outer casings and a wide choice of colors to your order
4. Our dedicated service team of experts and professionals is 24/7 available online to provide you with the best technical support

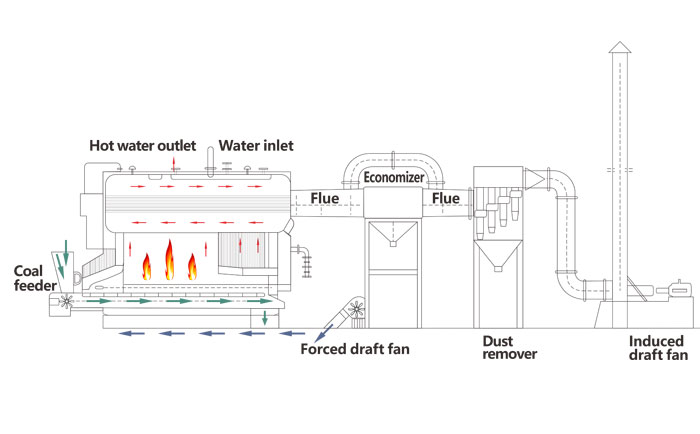

The lower part of the boiler is a combustion equipment, which adopts a light chain grate. The boiler is equipped with a coal pulverizer, a slag discharge machine and an electric control box, which can realize mechanization of coal slag and automatic control of water supply. This series of boilers has the advantages of compact structure, small size, single layer layout, short installation period and less capital investment.
01
02
thread tube pressing and convection tube processing all adopt advanced CNC technology
03
Comparing to other boilers,the boiler's water adaptability is strong.
04
Cold-rolled pressed plates, strong and elegant.
ZOZEN Boiler, which covers various types of fuels such as coal, fuel gas and biomass, produces high quality steam, hot water and organic carrier (heat transfer oil), which are widely used in chemical, pharmaceutical, food, feed, textile, building materials, Hotels, heating and other industries provide high-quality and reliable thermal power for industrial production and residents' lives.
