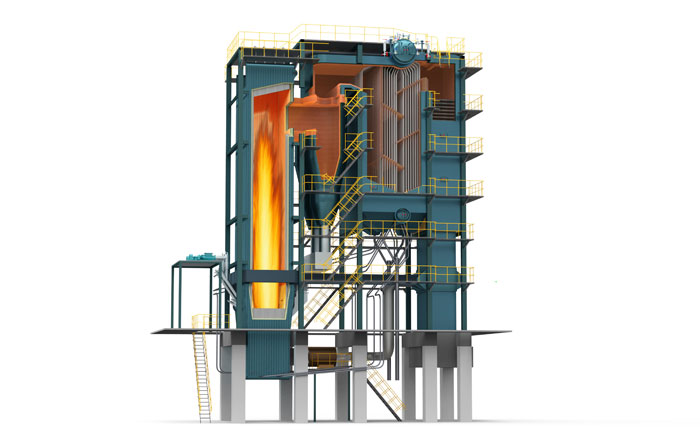

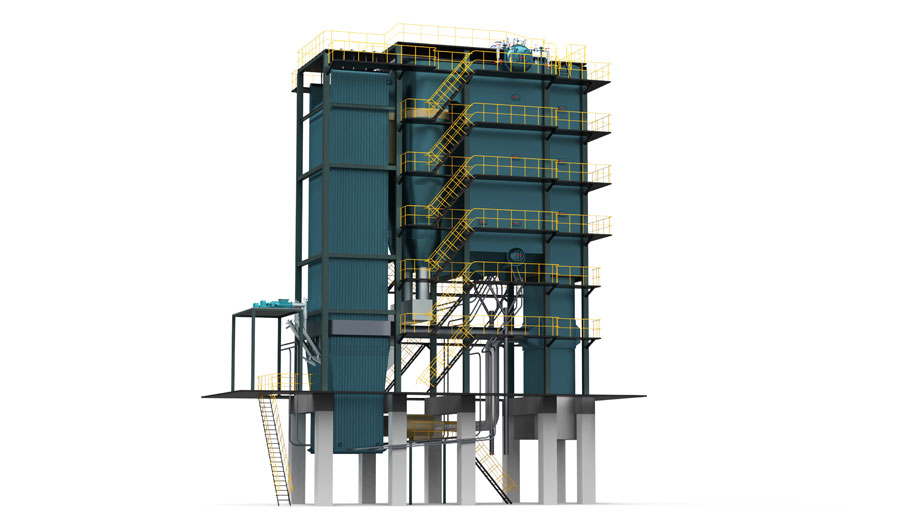

Home / coal fired boiler / CFB (circulating fluidized bed ) coal-fired hot water boiler
01Product thermal capacity:58-116 MW
02Working pressure:1.25-1.6 MPA
03Outlet temperature:90/70℃, 150/130℃
Available industries:Centralized heating
Send Enquiry
Get Quotation(contact us by one of the three ways)
If you are interested in our products, please email us at [email protected]
As a new mature high-efficiency and low-pollution clean coal technology, circulating fluidized bed combustion (CFBC) technology has many advantages that other combustion methods do not have.
Circulating fluidized bed combustion is low-temperature combustion, so the helium oxide emission is much lower than that of pulverized coal furnace, only 200ppm. CFBC can desulfurize directly during the combustion process, and the desulfurization efficiency is high.
The technology and equipment are simple and economic, and the costs of its initial investment and operation are much lower than those of dry pulverized coal furnace and flue gas desulfurization (PC+FCD).
The discharged ash residue has good activity and is easy to be comprehensive utilized without secondary ash residue pollution. The load adjustment range is large, and the low load can be reduced to about 30% of the full load.
Fuel adaptability: In CFB boilers, fuel accounts for only 1-3% of the bed material by weight, and the rest are non-combustible solid particles, such as desulfurizer, ash and so on. Therefore, the fresh coal particles added to the bed are surrounded by burning ash particles equivalent to a "large regenerator".
High combustion efficiency: The combustion efficiency of circulating fluidized bed boiler is higher than that of bubbling fluidized bed boiler, which can be compared with pulverized coal boiler in the range of 95-99%. The high combustion efficiency of CFB boiler is due to the following feature: good gas-solid mixing; high combustion rate, followed by fly ash recycling combustion.
Low nitrogen oxide (NOX) emissions: The low emission of nitrogen oxides is another attractive feature of CFB boilers. Operation experience shows that the NOX emission range of CFB boilers ranges from 50 to 150ppm or 40 to 120mg/MJ.
1. Our uniquely customized system solutions deliver maximum energy efficiency and low emissions
2. State of the art computer, variable frequency and video monitoring systems are in place to ensure the safe operation of our boliers
3. Agreeable design of outer casings and a wide choice of colors to your order
4. Our dedicated service team of experts and professionals is 24/7 available online to provide you with the best technical support
Circulating fluidized bed boilers adopt a new coal-fired technology with high efficiency, energy saving and low pollution. It has many advantages, such as wide fuel adaptability, high combustion efficiency, high efficiency desulfurization, low NOX emission, simple structure and easy operation.
01
02
Large furnace, low velocity design; the application of wearproof tube technology, reducing erosive abrasion.
03
Adopt bell type hood to distribute air averagely and avoid fuel reverse to wind chamber.
04
By particle optimization, the operating bed pressure can be decreased to 3500Pa
ZOZEN Boiler, which covers various types of fuels such as coal, fuel gas and biomass, produces high quality steam, hot water and organic carrier (heat transfer oil), which are widely used in chemical, pharmaceutical, food, feed, textile, building materials, Hotels, heating and other industries provide high-quality and reliable thermal power for industrial production and residents' lives.
