Home / biomass fired boiler / DHL series biomass-fired steam boiler
01Product thermal capacity: 20-75 t/h
02Working pressure:1.25-5.4 MPA
03Outlet temperature:184-485 ℃
Available industries:Power generation, heating, chemical, food, rubber
Send Enquiry
Get Quotation(contact us by one of the three ways)
If you are interested in our products, please email us at [email protected]

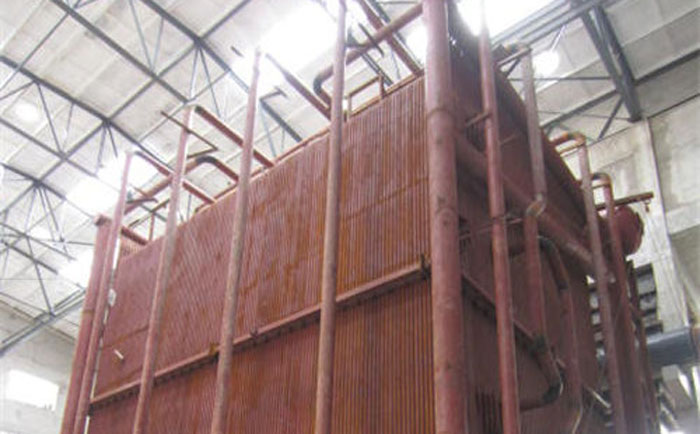

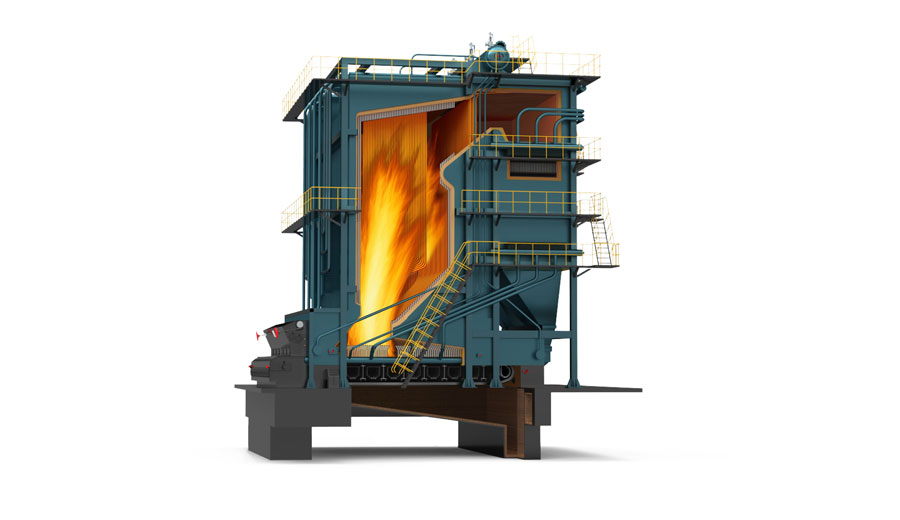

DHL corner tube boiler is field assembled boiler, it uses a piping system as the frame of the entire boiler, and it bears the full load of the boiler, which makes a non-framework boiler. At the same time, this frame also serves as the down comer of the boiler and upper and lower headers.
The boiler drum is an external type drum, the furnace is a fully enclosed membrane wall structure, the convective heat absorbing surface adopts the flag tube structure. The corner tube boiler has the advantages of compact structure, low steel consumption and rapid temperature increase.
1. The boiler adopts a unique water circulation structure, the drum is free from heat and the heated water flows in one direction. In the event of a power outage, the water system does not vaporize and the water circulation is safe and reliable.
2.Corner tube boiler adopts non-framework structure, boiler proper weight is supported by membrane wall and down comer, and all membrane walls are all welded into one whole, with good anti-seismicity.
3.All around the boiler proper is made of welded membrane walls, and the steel structure is completely sealed to prevent the occurrence of air leakage. The upper part of the boiler can be divided according to the size of the railway transportation limit. The excess air coefficient after the heating surface of the boiler tail is only less than 1.2, which not only reduces the heat loss of the exhaust fumes, reduces the power consumption of the induced draft fan, but also greatly reduces the environmental pollution of the boiler house.
1. Our uniquely customized system solutions deliver maximum energy efficiency and low emissions
2. State of the art computer, variable frequency and video monitoring systems are in place to ensure the safe operation of our boliers
3. Agreeable design of outer casings and a wide choice of colors to your order
4. Our dedicated service team of experts and professionals is 24/7 available online to provide you with the best technical support
DHL series biomass-fired steam boiler has the characteristics of high thermal efficiency, low operating cost, long-term trouble-free operation, low dust emission concentration at boiler outlet, light weight, less investment in infrastructure, chip loading and discharging, small workload in site installation, short installation cycle and so on.
01
02
The drum is free from heat and the heated water flows in one direction.
03

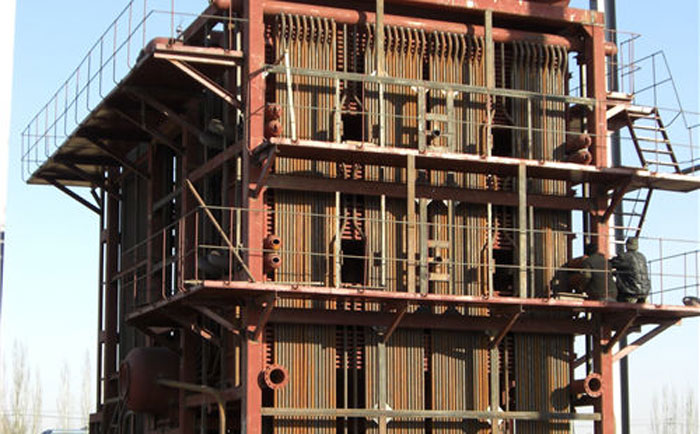

Corner tube boiler adopts non-framework structure, boiler proper weight is supported by membrane wall and down comer.
04

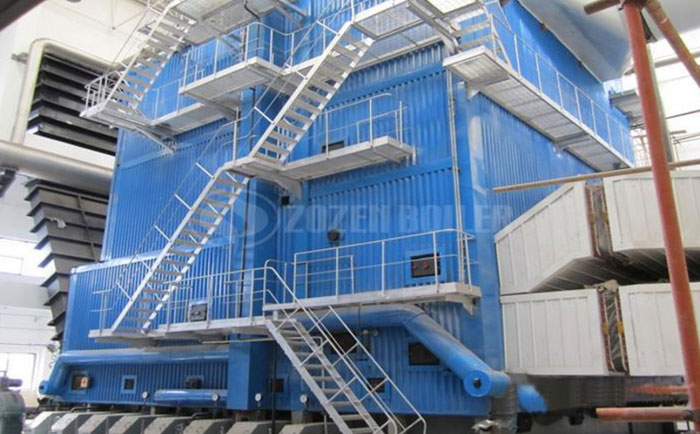

The steel structure is completely sealed to prevent the occurrence of air leakage.
ZOZEN Boiler, which covers various types of fuels such as coal, fuel gas and biomass, produces high quality steam, hot water and organic carrier (heat transfer oil), which are widely used in chemical, pharmaceutical, food, feed, textile, building materials, Hotels, heating and other industries provide high-quality and reliable thermal power for industrial production and residents' lives.
